DDi13

  • Horsepower: 520-580PS
  • Maximum torque: 2700N.m
  • Economic speed: 1100-1500rpm
  • Net weight: 1020kg
Category:

Product Overview

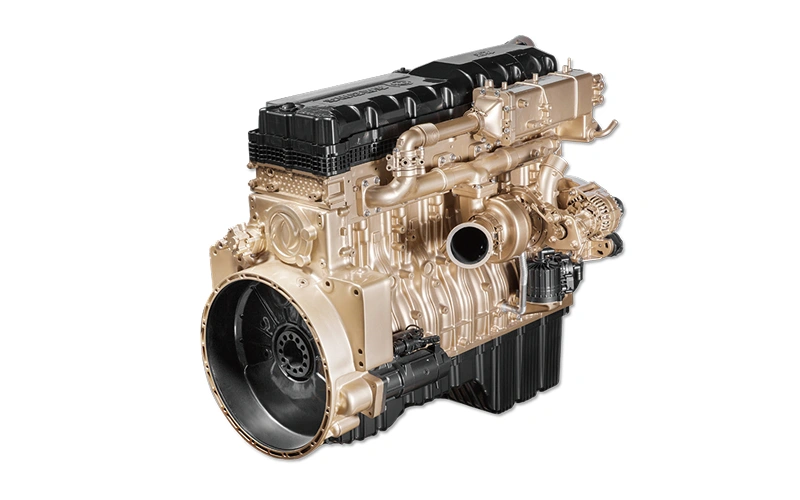

The Longqing DDi13 diesel engine is powerful, reliable, durable, economical and efficient. It is an ideal supporting power for a series of commercial vehicles such as tractors, engineering vehicles, and trucks. It is suitable for application scenarios such as efficient trunk logistics, medium and long-distance transportation, construction sites, and resource transportation.

DDi13ProductCharacteristics
Model DDi13E480-60 DDi13E560-60 DDi13E520-60 DDi13E580-60
Displacement (L) 12.9
Number of cylinders-Bore diameter × stroke (mm) 6-131X160
Rated power/Speed ​​speed(kW/r/min) 353/1800 410/1800 382/1700 425/1700
Maximum torque(N.m/r/min) 2400/950-1400 2600/1000-1400 2600/1000-1400 2700/1000-1400
Low idle speed (r/min) 600±100 600±100 600±100 600±100
High idle speed (r/min) 2250±50 2250±50 2250±50 2250±50
Economic speed range 1100-1500
Minimum fuel consumption rate (g/kW.h) 184 178
Weight (kg) 1020
B10 life (10,000 km) 120
Control system Autonomous control system
Technical route ColdEGR+ DOC+DPF+SCR

Product Advantages

Dynamics

2700bar injection pressure, 240bar combustion pressure, Dongfeng Commercial Vehicles patented SWTS combustion technology, with fast power response and excellent low-speed high-torque burst capability, strong power;

Economical

The high-efficiency combustion system and low oil consumption technology are adopted to reduce friction loss and oil consumption, and improve gas economy; the most economical fuel consumption range is wide (1000-1500r/min), which greatly reduces customer operating costs.

Reliability

Components integrated design, ABS engineering plastic cylinder cover/oil pan, aluminum alloy gear chamber, hollow assembled camshaft.
