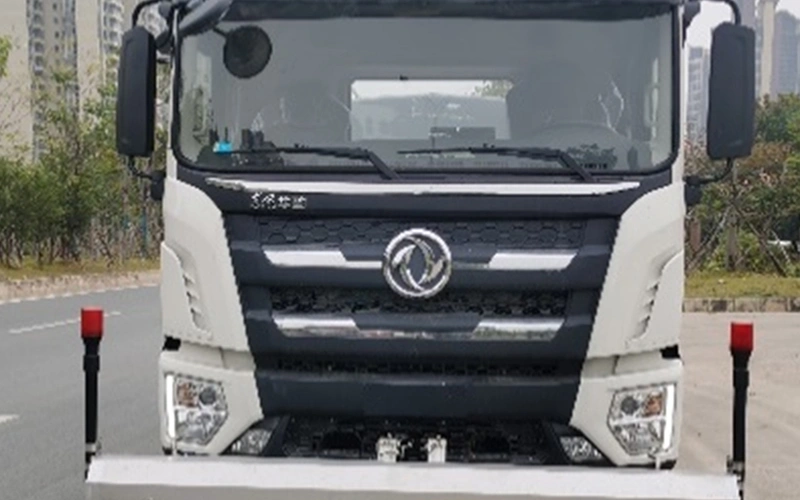

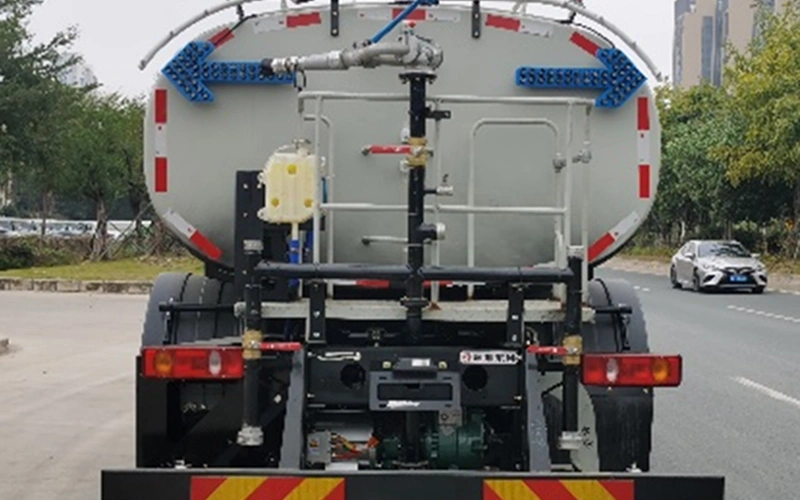

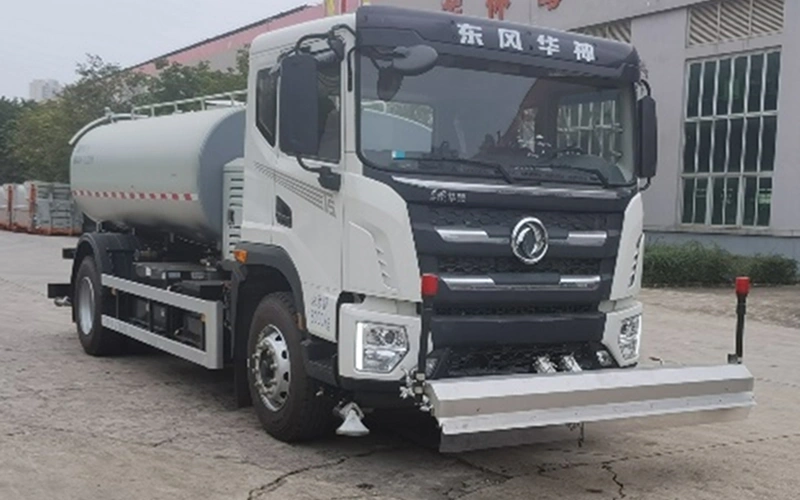

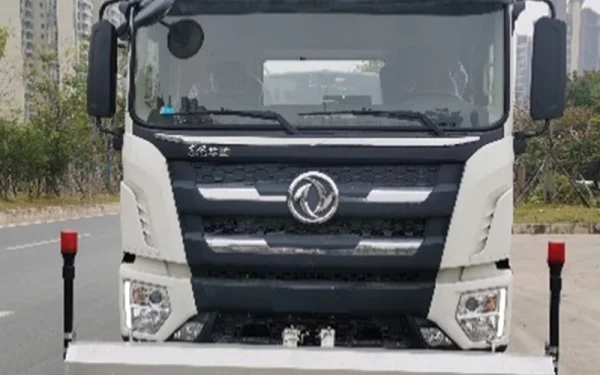

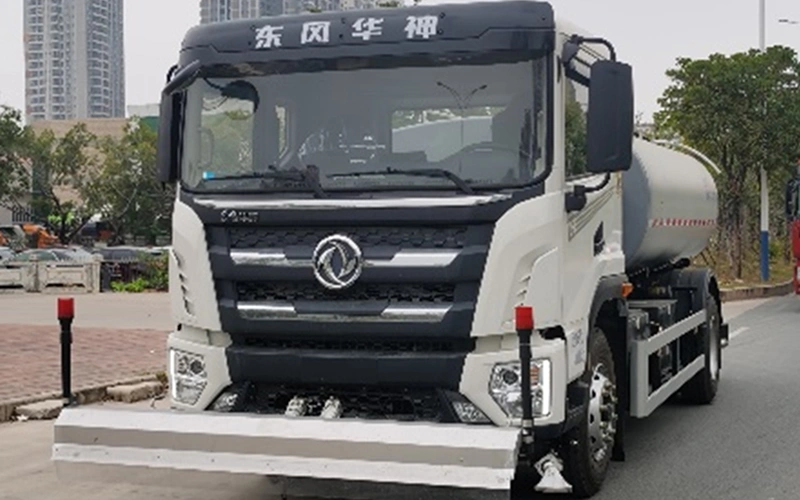

The truck is equipped with high-pressure and low-pressure waterway systems. The front of the truck is installed with a high-pressure water spray frame, left and right corner spray nozzles, and front sprinkler nozzles, while the rear is equipped with left and right low-pressure hedging, rear sprinkler, greening spraying, water monitor, rear spray, and other devices. It has the functions of high-pressure cleaning, hedging washing, road spraying, greening spraying, water monitor spraying, spray and dust reduction, and hand-held spray gun cleaning. It is mainly used for road cleaning, water spraying, spray and dust reduction, greening spraying, and other operations.

Application Scope

It is applicable to high-pressure cleaning of urban road pavement, roadside washing, hedge washing, pavement watering, spray dust reduction, and other pavement cleaning operations, as well as green belt spraying operations.

Technical Parameter

Energy Conservation and High Efficiency

High-pressure and low-pressure water pumps are driven by separate motor drive shafts, resulting in fewer power transmission links, high transmission efficiency, and fast power response speed.

Electronic Control Integration Design

The controller of special devices is integrated with the input and output control of the chassis high-voltage battery. The control signal and safety protection mechanism are connected through the CAN bus. In case of any fault affecting the safety of equipment and components, the vehicle can issue alarm prompts, force equipment shutdown, and initiate chassis power-off protection and other automatic protection measures according to the fault severity.

Durable Tank Body

The tank body is made of Q345 alloy steel, with an overall lightweight design and reasonable structure; internally coated with water-based anti-corrosive paint, making it safe, environmentally friendly, anti-corrosive, and durable.

Large Tank Volume with Long Continuous Operation Time

The water tank has a large volume, reaching the best volume level in the industry, ensuring long continuous operation time and convenient use.

Diversified Functions to Meet Different Operation Requirements

The vehicle is equipped with various operational features such as a front duckbilled sprinkler, rear counter, rear sprinkler, rear water monitor, front high-pressure water spray frame, front left and right high-pressure angle sprays, rear spray, handheld spray gun, and more.

Independent Functions and Convenient Operation

The upper high-pressure water pump and low-pressure water pump are controlled by two independent motor systems. Vehicle operation is not affected by chassis driving. The cab adopts an intelligent one-key operation mode, enabling one-key start or stop according to the selected operation function.

Special Device Accessories from International and Domestic Famous Brands with Reliable Quality

The high-pressure water pump adopts imported high-flow products, and the low-pressure water pump adopts domestically famous brand high-flow high-lift water pumps. The electric control system uses vehicle-grade CAN bus controllers and the vehicle control system. The upper motor uses a 40kw water-cooled permanent magnet synchronous motor. The touch control and button screen from a well-known brand in the industry are installed, ensuring excellent quality and long service life.
